QuickBooks Financial Integration

The QuickBooks File

Redcat Polygon can integrate with an online QuickBooks file.

How it works

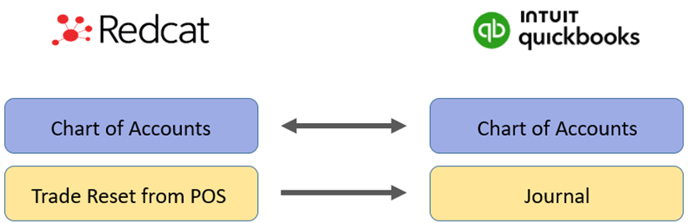

The integration between Redcat Polygon and QuickBooks creates a mapping between the Chart of Accounts in each program, including instructions on which Tax (GST, VAT) types are relevant to each account.

Information contained within the sales reset from the POS is posted to QuickBooks when the reset is processed in Polygon POS Management in the form of a Journal – for users running perpetual stock this will include the Asset | Cost journal relevant to stock decrementation.

---

Considerations for Redcat General Ledger Account Structure

The 'split revenue methodology' of the financial integration means that clients are not required to have a Tax inclusive and Tax free version of general ledger accounts.

However, some clients may want this for reporting purposes.  For example:

4-1103  Sales

4-1104  Sales - Tax Free

If you create general ledger accounts in this way and assign the PLUs to the relevant ledger account, please be aware that programming mistakes (for example, a tax inclusive PLU assigned to the tax free ledger account) will not cause the integration to fail when processing the reset.

The programming can be corrected, and any back adjustment required should be made in the QuickBooks database.

Paid Out Expenses

The same methodology applies to Paid Out transactions entered at the POS.

You may have a mix of tax inclusive and free Paid Out buttons programmed to the same ledger account (perhaps to the Expense account 5-2001 Miscellaneous Expenses).

---

Revenue Assignment for Instruction PLUs with Dynamic Tax Type

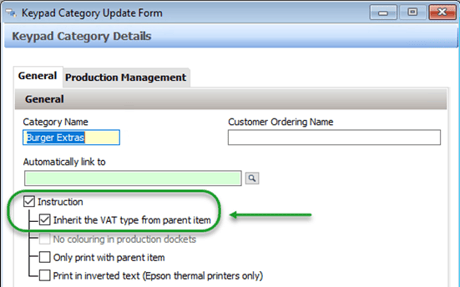

The PLU Category setting Inherit the [Tax] Type from parent item for instructional PLUs allows clients to utilise one set of Instruction PLUs to apply to different menu items (eg. Add Extras, etc). If the parent item does not attract tax  - the instruction will also be recorded with no tax regardless of the tax type programmed for the instruction PLU.

With the Quickbooks Financial Integration, Instruction PLUs that Inherit the [Tax] Type from parent item will also inherit the revenue account of the parent item.

This will only occur when:

• The instructional PLU is assigned to a category where the Inherit the [Tax] type from parent item is enabled.
• The instructional PLU is sold with a parent item.
• The instructional PLU has a $ value.
• The Polygon POS Management database has a financial integration enabled.

If an instructional PLU assigned to a category where the Inherit the [tax] type from parent item is enabled is sold with a parent PLU that has a split revenue assignment, the revenue account inherited will be the default revenue account assigned to the parent.

If a PLU in the category is sold without a parent item, the tax type and revenue account programmed for that PLU will apply.

---

Software Module Setup

Redcat Implementations or Support staff will facilitate the setup of the correct modules and walk you through the process to authorise the authentication between Redcat Polygon and QuickBooks.

As part of the installation process, they will also facilitate the following settings and programming. We have included them here for your information and future reference.

Polygon POS Management Setup

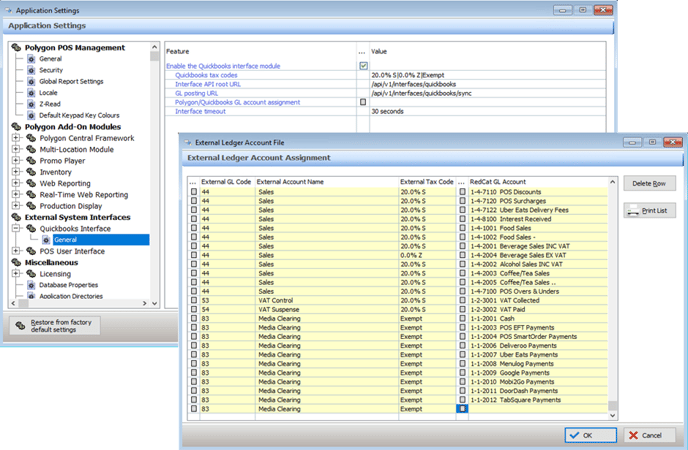

Under File | Application Settings | External System Interfaces

• Choose QuickBooks Interface | General
• Ensure Enable the QuickBooks interface module is on
• In the QuickBooks tax codes field, enter the account tax codes required for mapping, followed by pipe separators (with no extra spaces). These will become available in the External Tax Code pick list.

You can copy the QuickBooks tax codes applicable to the UK below.
20.0% S|0.0% Z|Exempt

This integration has been tested and documented against a UK QuickBooks database. The tax codes applicable to an Australian database will need to be determined.

• Interface API root URL:
       /api/v1/interfaces/quickbooks
•  GL posting URL:
        /api/v1/interfaces/quickbooks/sync

• Use the select icon next to Polygon/QuickBooks GL account assignment.

  • Press the select icon in the left column, this will display a list of Quickbooks accounts for this client, which are retrieved via API.

• • Select the relevant QuickBooks GL account, set the most relevant tax code for this account (the split methodology will send a mix of tax inclusive and tax free  if required), then select from the right-side list to apply the corresponding Redcat GL account.
  • Continue until all relevant accounts are mapped and use the OK button to save.
• In the Interface Timeout field, enter the amount of time (in seconds) that the system will wait for a response before deeming the posting to have timed out.

---

Processing Resets

With the module correctly enabled, posting from Redcat to QuickBooks will occur automatically when sales resets are processed in the Revenue Download screen or via the auto-download and processing service.

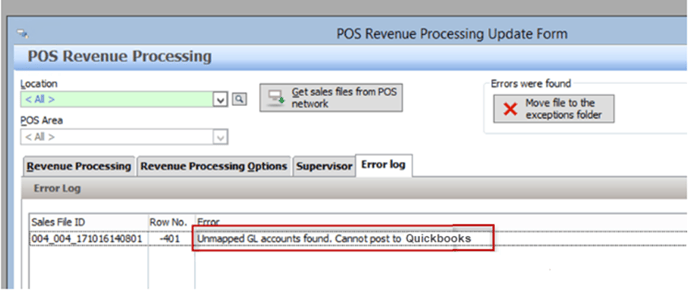

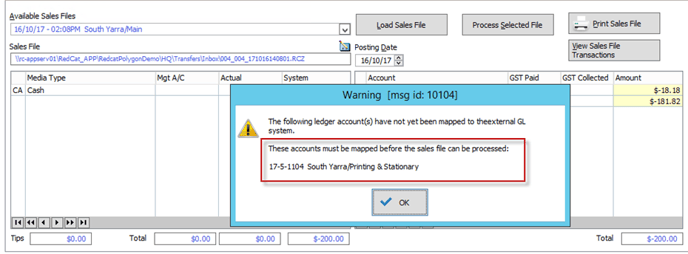

If a Redcat account is detected in the GL Reference of a sales reset, which has not been mapped to an external QuickBooks account as per the section above, the following errors will be displayed specifying the offending account(s):

The reset will not be processed in Polygon POS Management until this is rectified. Follow the steps above to map the account correctly then return to Revenue Download to attempt the process again.

---

Reset Corrections

If a client requests the Support team to change a reset and reprocess it, the recommended process is as follows:

1. The client identifies and deletes the relevant journals created by this sales reset in QuickBooks.
2. Redcat Support performs reset correction as per the standard process in Polygon POS Management.
3. Either the client or Redcat Support re-processes the corrected reset.
4. The client verifies the correct result in QuickBooks.

---
